the pekwm session

PeKwm is a window manager for X developped by Claes Nästèn. extremly configurable, based on aewm++, pekwm proposes tab navigation, keybinds & keychains, editable menu, autoproperties for clients... all in differents configuration files .. many files :D

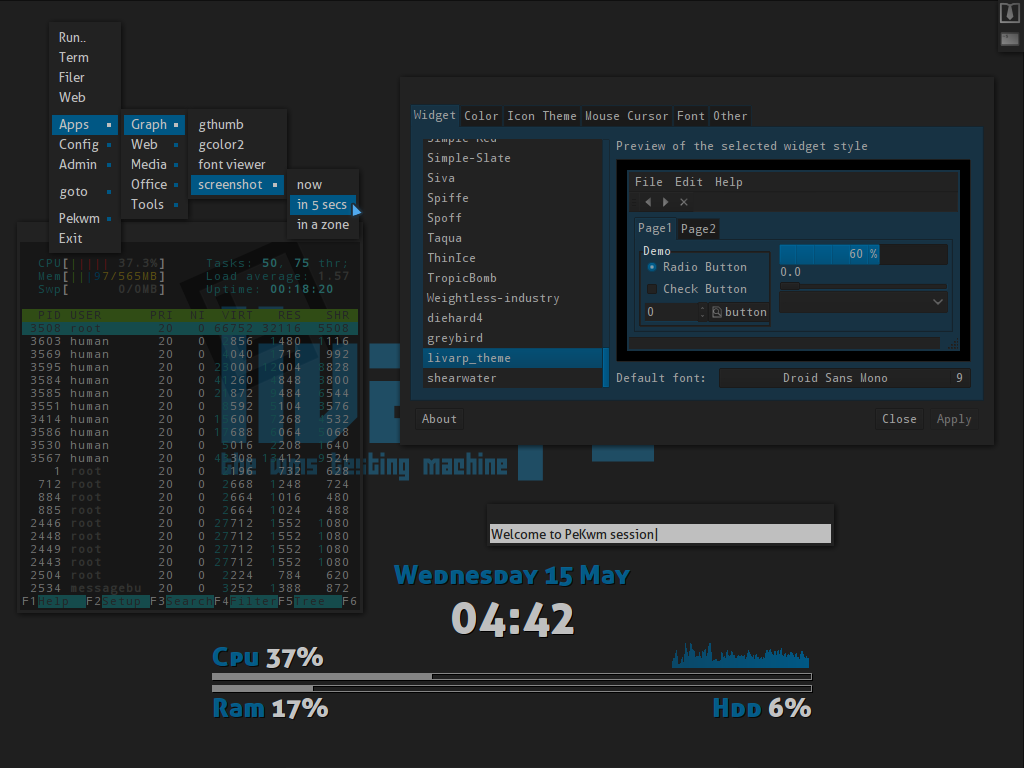

screenshot

startup

pekwm is launched by the ~/bin/start/pekwm_start.sh script.
to change your startup applications, simply edit this file: vim bin/start/pekwm_start.sh or from the pekwm menu:section pekwm:config:edit pekwm startup

components

pekwm has many features, but i've added conky fbpanel and lxpanel as tasklist (icons-only), on top-right corner of your screen (configurable from lxpanel itself with a right-click:add/delete applets).

configuration

to configure conky, simply edit its conkyrc: vim .conky/conkyrc_pekwm or from the pekwm menu:section config:conky.

lxpanel, has its own configuration editor in graphic mode. right-click on panel to enable lxpanel configuration. for more info, visit lxpanel dedicated page.

fbpanel includes menu & systray, please visit the dedicated page.

pekwmconfiguration

you can configure pekwm by editing its configuration files available in ~/.pekwm/*

• ~/.pekwm/start: here you can add applications to be launched on pekwm startup. note that it also gets re-run every time pekwm is restarted. so, you may add startup apps in your ~/bin/start/pekwm_start.sh if you don't want to run processes two times.
  you can use it to display a random wallpaper:

#!/bin/sh
# PekWM start file
# This file is a simple shell script; It gets run on pekwm startup, after
# the theme and all config has loaded if it is set executable
# (chmod +x start).
#
# This is different from ~/.xinitrc because a normal configuration of
# .xinitrc you'll run all commands, then launch the window manager last.
#
# It also gets re-run every time pekwm is restarted.
#
# As for it's usefulness, well, it's up to you. I actually set my background
# from my start file; since it runs after the theme gets loaded, this
# effectively overrides whatever's in the theme.
#
# There's probably a few other good uses for it, too. I mainly pushed for it
# because when I was doing fluxbox's docs, people used to complain that there
# wasn't one, and I wanted to avoid that for pekwm. ;) --eyez

# random wallpaper script #
# depends on feh '# apt-get install feh' #
find [adresse_du_dossier] -type f -name '*.jpg' -o -name '*.png' | shuf -n 1 | xargs feh --no-xinerama --bg-scale &

• ~/.pekwm/config: the main pekwm configuration file. here you can define default files, number and names of workspaces, windows properties, pekwm launcher configuration...
  general syntax and accepted options:

## path of pekwm files##
## Path could be relative or absolute
Files {
    Keys = "~/.pekwm/keys"
    Mouse = "~/.pekwm/mouse"
    Menu = "~/.pekwm/menu"
    Start = "~/.pekwm/start"
    AutoProps = "~/.pekwm/autoproperties"
    Theme = "/usr/share/pekwm/themes/default"
    Icons = "~/.pekwm/icons/"
}

## window move/resize ##
MoveResize {
    EdgeAttract   distance from screen edge required for the window to snap against it
    EdgeResist    distance from screen edge required for the window moving to start being resisted
    WindowAttract distance from other clients that a window will snap against them to in pixels
    WindowResist  The distance from other clients that a window movement will start being resisted
    OpaqueMove    If true, turns on opaque Moving
    OpaqueResize  If true, turns on opaque Resizing
}
## propriétés des bureaux
Screen {
    Workspaces             Number of workspaces enabled
    WorkspacesPerRow       Number of workspaces on each row. 0=all workspaces on a single row
    WorkspaceNames         List of names for workspaces separated by ;
    ShowFrameList          display a list of all available frames on the workspace
    ShowStatusWindow       display a size/position info window when moving or resizing
    ShowStatusWindowCenteredOnRoot display a center/size/position info window
    ShowClientID           Should Client IDs be displayed in window
    ShowWorkspaceIndicator Show WorkspaceIndicator for N milliseconds
    PlaceNew               place the client, if False, open on top-left corner
    FocusNew               Toggles if new windows should be focused when they pop up

    TrimTitle          This string contains what pekwm uses to trim down overlong window titles
    FullscreenAbove    Toggles restacking of windows when going to and from fullscreen mode
    FullscreenDetect   detect screen when fullsecreen is called
    HonourRandr        Toggles reading of XRANDR information
    HonourAspectRatio  Toggles if pekwm respects the aspect ratio of clients
    EdgeSize           How many pixels from the edge of the screen should screen edges be
    EdgeIndent         Toggles if the screen edge should be reserved space
    PixmapCacheSize    Determines how many unused pixmaps are stored on the image cache
    DoubleClickTime    Time, in milliseconds, between clicks to be counted as a doubleclick

    ## Placement-subsection
    ## Model (string):
    ## Smart: Tries to place windows where no other window is present
    ## MouseCentered: Places the center of the window underneath the mouse pointer position
    ## MouseTopLeft: Places the top-left corner of the window under the pointer
    ## MouseNotUnder: Places windows on screen corners avoiding the mouse cursor position
    ## CenteredOnParent: Places transient windows at center of their parent window
    Placement {
        Model = "CenteredOnParent Smart MouseNotUnder"
        Smart {
            Row          Whether to use row or column placement, if true, uses row
            TopToBottom  If false, the window is placed starting from the bottom
            LeftToRight  If false, the window is placed starting from the right
            OffsetX      Pixels to leave between new and old windows and screen edges
            OffsetY      Pixels to leave between new and old windows and screen edges
        }
    }

    ## define if a window should have a unique name in the window list
    ## if true, name will be followed by a number
    UniqueNames  {
        SetUnique  Decides if the feature is used or not
        Pre        String to place before the unique client number
        Post       String to place after the unique client number
    }
}

## menu configuration
Menu {
    DisplayIcons  display icons in menu

    Icons = "DEFAULT" {    ## icon size of the "DEFAULT" menu
        Minimum = "16x16"
        Maximum = "16x16"
    }

    # different icon size depending on menus

    # Icons = "Wallpaper" {
    #     Minimum = "64x64"
    #     Maximum = "64x64"
    # }

    # Definition of the behavior of the mouse on menu items:
    # values: "ButtonPress ButtonRelease DoubleClick Motion"

    Select = "Motion MotionPressed"       ## selection on hover
    Enter = "MotionPressed ButtonPress"   ## enter on click
    # Enter = "Motion"                    ## enter on hover
    Exec = "ButtonRelease"                ## execute when release
}

## command dialog configuration
CmdDialog {
    HistoryUnique       avoid repetition in history
    HistorySize         history size
    HistoryFile         history record file
    HistorySaveInterval history interval record
}

## harbour configuration
Harbour {
    OnTop         Whether or not the harbour is "always on top"
    MaximizeOver  Controls whether maximized clients will cover the harbour
    Placement     position
    Orientation   orientation
    Head          screen
    ## dockapps configuration
    DockApp {
        SideMin  minimal size
        SideMax  maximal size 0=unlimited
    }
}

• ~/.pekwm/keys: keybinds/mousebinds/keychains configuration file. pekwm supports keychanins to enable second keybind level.
  take care to not produce duplicated entries whem modify. note: comment/disable uneeded entries before editing.
  as pekwm files are in english, this file is pretty easy to understand (french doc is longer :) )
  livarp pekwm shortcuts available on bottom of this page

• ~/.pekwm/mouse: mouse action on wondows, menus..

## values ##
ButtonPress:   a simple click
ButtonRelease: command executed on click release
DoubleClick:   double-click
Motion:        Clicking, holding, and Dragging
Enter:         how to act when mouse pointer enters an action place
Leave:         how to act when mouse pointer leaves an action place
EnterMoving:   Defines how to act when a dragged window enters a ScreenEdge

## boutons ##
1: left click
2: middle click
3: right click
4: scroll up
5: scroll down

## basic actions ##
Focus:          give focus
Raise:          put client above others
ActivateClient: activate the client in a client group
Move:           move client
Resize:         resize client
Close:          close client

• ~/.pekwm/vars: you may have noticed the ' INCLUDE = "vars" ' line on top of some pekwm files. that's what this file is about. it includes your prefered regular apps. here is an example:

$TERM="urxvtc"
$FILER="urxvtc -name filer -e ranger"
$GFILER="rox-filer"
$WEB="uzbl http://start.arpinux.org"
$GWEB="firefox"
$EDIT="urxvtc -name editor -e vim"
$GEDIT="geany"
$ZIK="urxvtc -name player -e mocp -T transparent-background"
$VOL="urxvtc -e alsamixer"
$JAB="urxvtc -e mcabber"

• ~/.pekwm/menu: The root menu is what you get when you left-click on the root window (also called the desktop). You can also configure the window menu, which you get when you right-click on a window title.

As previously indicated, the root and window menus follow the rules defined in Common Syntax. There aren't many possible options, and they're all either within the main menu, or within a submenu. This is all handled by a single file.

# Menu config for pekwm

# Variables
INCLUDE = "vars"

RootMenu = "Pekwm" {
Entry = "terminal" { Actions = "Exec $TERM &" }
Entry = "execute.." { Actions = "ShowCmdDialog" }

Separator {}

Submenu = "goto..." {
SubMenu = "workspace" {
COMMAND = "/usr/share/pekwm/scripts/pekwm_ws_menu.sh send"
}
Entry = "client.." { Actions = "ShowMenu GotoClient True" }
}
Submenu = "Pekwm" {
Submenu = "themes" {
Entry { Actions = "Dynamic /usr/share/pekwm/scripts/pekwm_themeset.sh /usr/share/pekwm/themes" }
Entry { Actions = "Dynamic /usr/share/pekwm/scripts/pekwm_themeset.sh ~/.pekwm/themes" }
}
Entry = "reload" { Actions = "Reload" }
Entry = "restart" { Actions = "Restart" }
Entry = "quit" { Actions = "Exit" }
}

Separator {}

INCLUDE = "debian-menu"
}

WindowMenu = "window menu" {
Entry = "toggle sticky" { Actions = "Toggle Sticky" }
Entry = "toggle shaded" { Actions = "Toggle Shaded" }
Entry = "iconified " { Actions = "Set Iconified" }
Entry = "command.." { Actions = "ShowCmdDialog" }

Submenu = "maximisation" {
Entry = "full" { Actions = "Toggle Maximized True True" }
Entry = "horizontal" { Actions = "Toggle Maximized True False" }
Entry = "vertical" { Actions = "Toggle Maximized False True" }
}
Submenu = "fill free space" {
Entry = "full" { Actions = "MaxFill True True" }
Entry = "horizontal" { Actions = "MaxFill True False" }
Entry = "vertical" { Actions = "MaxFill False True" }
}
Submenu = "placement" {
Entry = "raise client " { Actions = "Raise" }
Entry = "lower client" { Actions = "Lower" }
Entry = "always on top" { Actions = "Toggle AlwaysOnTop" }
Entry = "always below" { Actions = "Toggle AlwaysBelow" }
}
Submenu = "decorations" {
Entry = "toggle decorations" { Actions = "Toggle DecorBorder; Toggle DecorTitlebar" }
Entry = "toggle borders" { Actions = "Toggle DecorBorder" }
Entry = "toggle titlebar" { Actions = "Toggle DecorTitlebar" }
}

Submenu = "Skip" {
Entry = "Menus" { Actions = "Toggle Skip Menus" }
Entry = "Focus Toggle" { Actions = "Toggle Skip FocusToggle" }
Entry = "Snap" { Actions = "Toggle Skip Snap" }
}
SubMenu = "sendto..." {
COMMAND = "/usr/share/pekwm/scripts/pekwm_ws_menu.sh send"
}
Separator {}
Entry = "close" { Actions = "Close" }
Submenu = "kill" { Entry = "Kill application" { Actions = "Kill" } }
}

• ~/.pekwm/autoproperties: aka the rules files: defines some specific properties for your applications. this file is well commented and easy to understand as it's in english (the french doc is longer :) )

• ~/.pekwm/themes ,/scripts, /icons
  • the ~/.pekwm/themes directory includes downloaded/created themes if ou want them to be detected/used by pekwm
  • the ~/.pekwm/scripts directory includes scripts used by pekwm dynamics menus
  • the ~/.pekwm/icons directory includes icons used by pekwm themes

keybinds/mousebinds

configured by the ~/.pekwm/keys file, here are the livarp pekwm session shortcuts:

menus:

• fbpanel menu: available on top-left corner of your screen
• pekwm menu: right-click on desktop or Super+R
• hide menus: Super+x
• dmenu: Alt+d
• run command dialog: Super+d

control:

reload pekwm: Ctrl+Alt+r

quit pekwm: Ctrl+Shift+Alt+q, from the pekwm menu:exit or lxpanel:logout

windows:

• close client: Super+q
• shade client: Super+s
• iconify client: Super+i
• prev/next client: Alt(+Shift)+Tab
• prev/next client-group: Ctrl+Alt(+Shift)+Tab
• prev/next tabbed client: Super(+Shift)+Tab
• maximize: Super+m
• fullscreen: Super+f
• move: Alt+clic-gauche
• resize: Alt+clic-droit

navigation:

• prev/next workspace: Ctrl+Alt+Left/Right
• workspace 'n': Super+'n'
• sendto workspace 'n': Super+F'n'
• sendto & goto prev/next workspace: Ctrl+Alt+Shift+Left/Right

launchers:

• default terminal: Ctrl+Enter or Super+e
• launch ranger: Alt+r
• launch rox-filer: Alt+Shift+r
• launch firefox: Alt+w
• launch vim: Alt+e
• launch geany: Alt+Shift+e
• music player: Alt+z
• volume control: Alt+v

keychains:

allows you to enable a second keybind level with a first keybind. complete list available in the ~/.pekwm/keys file: section "CHAINS".
